Product description
GPON ONT GPN04 combination of Data ONU + Wi-Fi, which is mainly designed for operator and fully complies with ITU-T984 standards.
SKY-GPN04 ONT product is a pure data ONT product independently innovated in accordance with the relevant recommendations and standards of ITU-T and IEEE, the technical specifications of international standards and industry standards, and the relevant requirements of GPON ONT equipment. Take full account of the need to rapidly carry out the "triple play" business in the existing cable TV network and meet the needs of users for multiple value-added services, which can rapidly improve the market competitiveness of cable TV operators and well meet the application of radio and television FTTH.
Main advantages
1. Support optical fiber line switching technology, adaptive EPON or GPON OLT office. The selection of working mode is automatically completed by the equipment, without manual participation in setting and operation.
2. EPON mode supports uplink and downlink symmetric 1.25Gbps PON transmission rate, GPON mode supports uplink 1.25Gbps downlink. 2.5Gbps PON transmission rate, efficient bandwidth utilization and Ethernet service support capabilities help operators provide reliable service quality assurance for their users.
3. 4GE GPON ONT supports 2.4GHz and 5.8GHz Wi-Fi at the same time.
4. Low-power design, the power consumption of the whole machine is less than 7w, and the indicator light is off to save energy.
5. Powerful wireless Wi-Fi coverage. Support 802.11ac dual-band Wi-Fi with high-performance data forwarding function. Internal and external2x2 MIMO (2.4G&5.8G) external 4 antennas, antenna gain 5dBi, multiple SSID function and WPS function support.
Product features
1. The point-to-multipoint network topology is adopted to effectively collect and gather the scattered Ethernet services of users, and the standard RJ45 fast Ethernet interface is provided on the user side to smoothly interconnect with the existing network.
2. Support IGMP snooping/ Proxy.
3. Four Ethernet ports are provided to support port isolation. Support Ethernet loop detection.
4. Support VLAN. Support VLAN tag, transparent.
5. Rich OAM and OMCI function design, including configuration, alarm, performance monitoring, fault isolation and security management, not only provides remote management through OLT, but also supports local console management.
Technical parameters

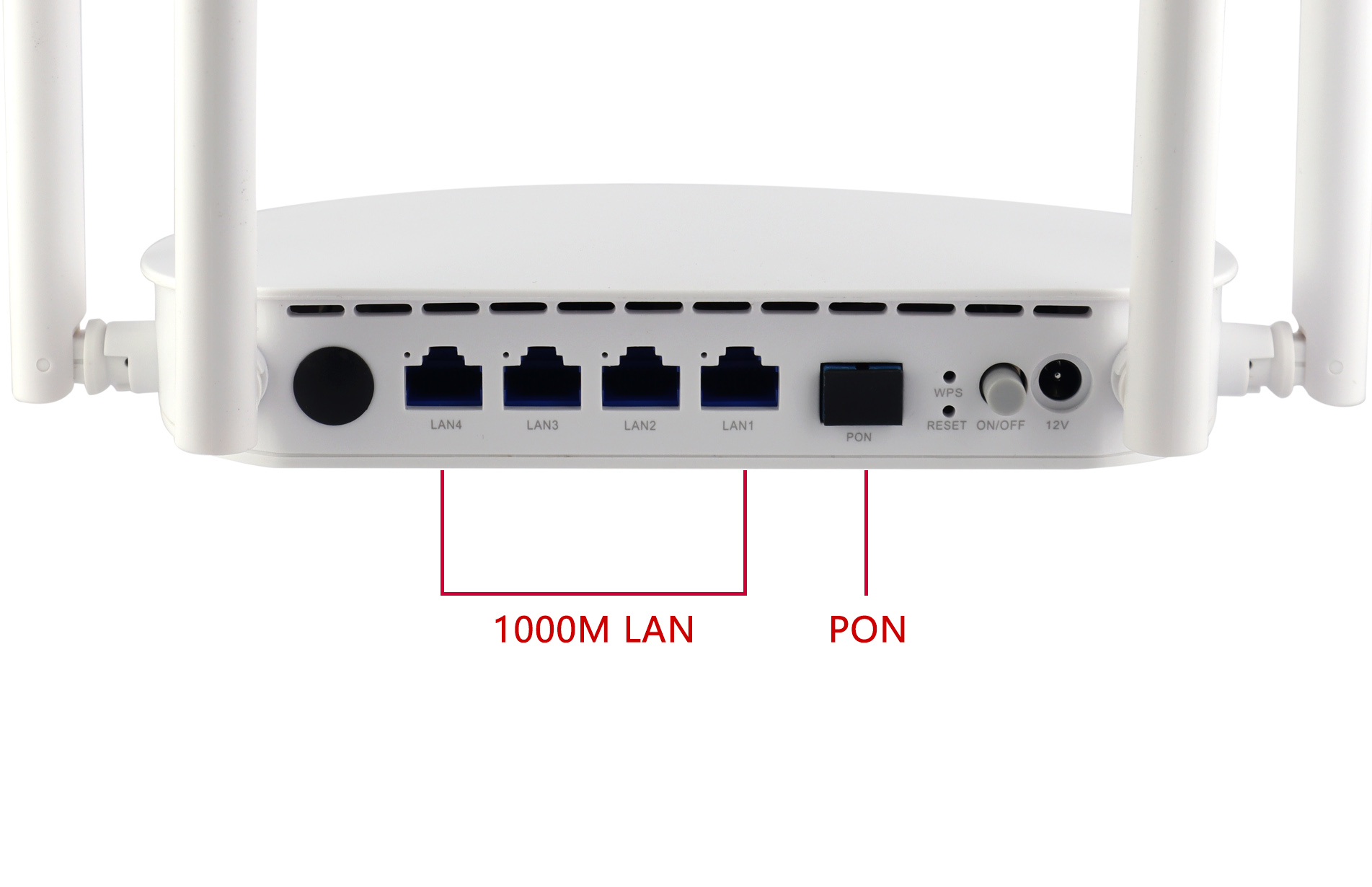

User measurement interface | 4x 10/100/1000M Base-T Self-adaptive RJ45 port |
PON interface | EPON mode：uplink 1.25Gbps downlink 1.25Gbps transmission rates GPON mode：uplink 1.25Gbps downlink 2.5Gbps Signal coverage radius: 20Km Optical physical conditions：support CLASS B+/CLASS C+、PX20/PX20+ High-sensitivity optical receiver : No less than -30dBm Optical power：-8dBm |
VLAN | Port-based VLAN IEEE802.1Q VLAN |
Network security | Support MAC address black / white list, MAC address filtering URL/IP filter Port isolation protection Message storm control |
Management configuration | CLI, Web, SNMP, TELNET and other various management methods Support the management mode of TR 069 Software dual backup and rollback Local or server syslog records the system logs Both Chinese and English WEB page management Ping, traceroute and other network test tools Debug the output debug |
System function | The NTP server configuration Virtual server configuration DMZ configuration Dynamic DNS configuration The OMIC protocol controls The IPv4 / IPv6 double-stack |
Physical size | 186x138x30mm Installation: desktop, plug and play |
Environmental requirements | Working environment: -15℃ ~55℃; 10%~95% (Non-condensing) Storage environment: -40℃ ~80℃; 10%~95% (Non-condensing) |
Power supply | Power adapter type: Switch power adapter DC12V/1A Power consumption: Maximum 9W |
Electromagnetic compatibility EMC | RE radiation emission：VCCI Class B CS conduction immunity (power supply, network cable): shielding chamber E=3V, carrier sine wave of 0.15 ~ 80 MHz, modulation signal of 1KHz, 80% adjustment, normal operation (no packet loss, no chain break, no restart). Electrostatic experiment (ESD): air discharge ± 8KV, contact discharge ± 6KV. Lightning surge (power supply): differential mode ± 4KV, common mode ± 4KV (class B standard). EFT immunity (power supply, network cable): power port ± 2KV, network cable port ± 1KV, repetition frequency 5KHz, waveform 5 / 50ns, allowing automatic recovery after packet loss / interference removal. |
Wireless performance parameter
Network mode | 802.11b/g mixed mode,802.11b/g/n mixed mode, 802.11g only,802.11n. 802.11ac |
Wireless emission power | The transmitting power of the whole device is 20dBm, and the transmitting power can be adjusted |
Support rate | 802.11b：1、2、5.5、11Mbps 802.11g：6、9、12、18、24、36、48、54Mbps 802.11n：Maximum 300Mbps 802.11ac: Maximum 866Mbps |
Way of encryption | 64/128 bit WEP，WPA-PSK/WPA2-PSK (TKIP/AES) |
RF switch | Contains, can be off |
System model | Bridge + router hybrid mode |
WAN features | Support the PPPoE mode Support for static IP Support for dynamic IP |
DHCP Server | Support for DHCP Server， DHCPv6 Server |
WLAN characteristic | Support for the automatic / manual channel function Support SSID hiding, isolation, WMM (priority marking and queuing function), etc |
NAT features | Support for dynamic address conversion support for DMZ Support for Port forwarding |
Security features | Support for the firewall function Support for the IP address filtering Support for Ports filtering Support for MAC address filtering Support for the URL filtering |
DNS | Support for DNS Proxy |
